Product Details
Place of Origin: CHINA
Brand Name: ZHITIAN
Model Number: SHTD110N
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: consult with
Packaging Details: Wooden Box
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: 50 Pieces/Month
Material: |
Cast Iron |
Color: |
Red Or White |
RPM Speed: |
300-900r/min |
Power: |
560-1400 Kw |
Torque: |
7427-8913N.M |
Packaging: |
Wooden Box |
L*W*H: |
2224*960*850MM |
Weight: |
3600KG |
Torque Grade: |
10.18-12.22T/A3 |
Material: |
Cast Iron |
Color: |
Red Or White |
RPM Speed: |
300-900r/min |
Power: |
560-1400 Kw |
Torque: |
7427-8913N.M |
Packaging: |
Wooden Box |
L*W*H: |
2224*960*850MM |
Weight: |
3600KG |
Torque Grade: |
10.18-12.22T/A3 |

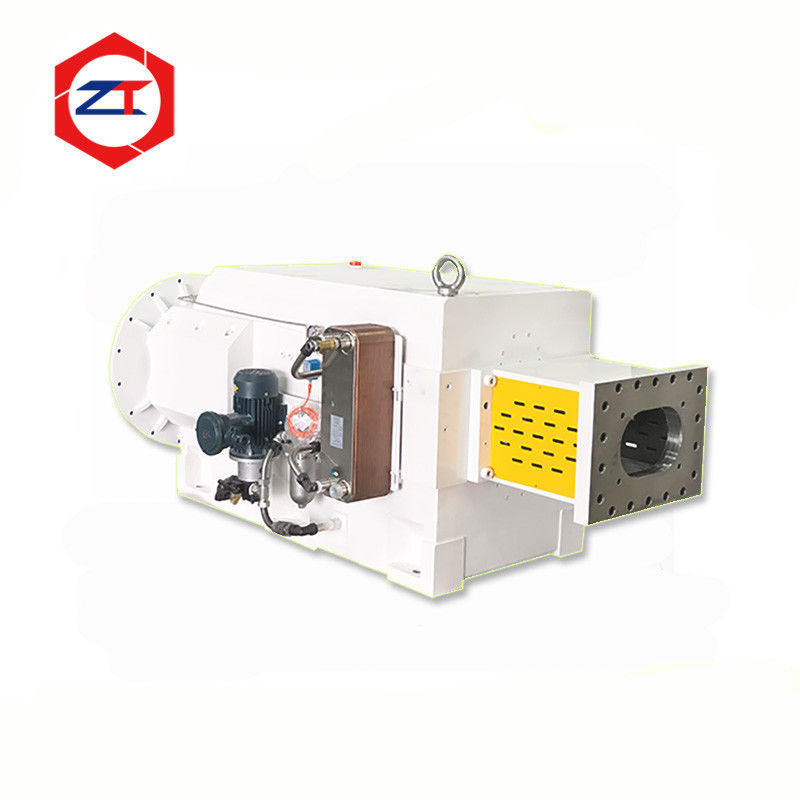

ZT110N Very Big High Torque Gearbox For Plastic Extruder Machine
Quick Details
Product Name:ZT110N Very Big High Torque Gearbox For Plastic Extruder Machine
Material: Cast Iron
Color: Red or White
Exprience:20 years
Packaging: Wooden Box
Lead Time: 30-90 days
Key Features
---The robust and optimized structure significantly reduces vibration.
---Designed for high torque and exceptional output speed.
---Precision-ground gears maintain extremely low operational noise.
---Equipped with a forced lubrication and cooling filtration system for superior heat dissipation.
---All bearings are sourced from globally recognized brands.
ZT-N Twin Screw Extruder Gearbox Parameters
| ZT-N Gearbox Power&Torque Table | ||||||||
| Model | CD(MM) | Torque Grade(T/A3) | RPM 300r/min | RPM 400r/min | RPM 500r/min | RPM 600r/min | RPM 800r/min | RPM 900r/min |
| ZT20N | 18 | <13 | --- | --- | --- | 7.5kw | 11kw | --- |
| ZT25N | 22 | <13 | --- | --- | 11kw | 15kw | 18.5kw | 22kw |
| ZT30N | 26 | <13 | --- | --- | --- | 22kw | 30kw | 37kw |
| ZT35N | 30 | <13 | 18.5kw | 22kw | 30kw | 37kw | 50kw | 60kw |
| ZT40N | 34.5 | <13 | 30kw | 45kw | 55kw | 65kw | 90kw | 90kw |
| ZT50N | 42 | <13 | 55kw | 75kw | 90kw | 110kw | 132kw | 160kw |
| ZT52N | 43 | <13 | 55kw | 75kw | 90kw | 110kw | 132kw | 160kw |
| ZT58N | 48 | <13 | 90kw | 110kw | 132kw | 160kw | 220kw | 250kw |
| ZT65N | 52 | <13 | 110kw | 132kw | 160kw | 220kw | 280kw | 315kw |
| ZT75N | 60 | <13 | 160kw | 220kw | 250kw | 315kw | 450kw | 500kw |
| ZT85N | 67.8 | <13 | 220kw | 315kw | 400kw | 500kw | 600kw | 650kw |
| ZT95N | 78 | <13 | 350kw | 450kw | 550kw | 650kw | 900kw | 1000kw |
| ZT110N | 92 | <13 | 560kw | 710kw | 900kw | 1000kw | --- | --- |
| ZT125N | 100 | <13 | 800kw | 1000kw | 1250kw | 1400kw | --- | --- |
| ZT135N | 110 | <13 | 1000kw | 1400kw | 1600kw | 2000kw | --- | --- |
| ZT150N | 120 | <13 | 1320kw | 1750kw | --- | --- | --- | --- |
Production Process
|
NO.1 Workblank
Select high quality and hardness of ductile iron material. |
|
NO.2 Rough Machining
Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching. |
|
|
NO.3 Finish Machining
Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you. |
|
NO.4 Gearbox Inspection
High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct. |
|
|
NO.5 Assemble
Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished. |
|
NO.6
Delivery
Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit. |
|
FAQ
How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.
What parts does the product contain?
---Gearbox baby,Coupling,Spline,External oil circulation system,Operating instructuins and so on.
Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.
How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
